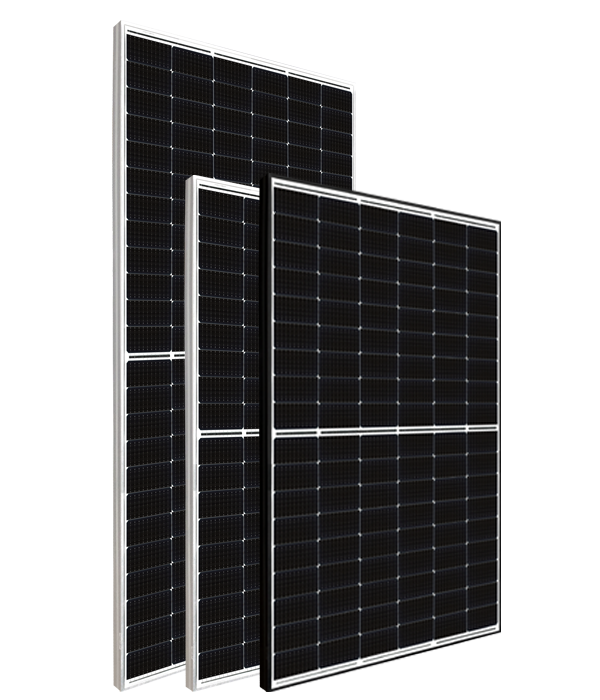

TOPHiKu6 CS6.2-66TM N-type TOPCon Solar Module (610W–635W)

TOPHiKu6 CS6.2-66TM N-type TOPCon Solar Module (610W–635W)

Detail
Code CS6.2-66TM-610~635 Series TOPHiKu6 Series
Spec 610–635W / 132 Half-cut Cells / 1500V / 2382×1134×30 mm Material N-type Mono Silicon / Glass-Backsheet / Aluminum Alloy Frame
Color Silver Frame / Anti-reflective Tempered Glass Brand CSI Solar
Model N-type TOPCon Monofacial Module

TOPHiKu6 CS6.2-66TM N-type TOPCon Solar Module

High Efficiency | 610W – 635W | 132 Half-Cut Cells | 1500V


Product Overview

The TOPHiKu6 CS6.2-66TM is a high-performance solar module from CSI Solar, engineered with the latest N-type TOPCon technology to deliver superior energy output, long-term reliability, and reduced LCOE for utility-scale and commercial solar projects.

With module power up to 635W and efficiency up to 23.5%, this series offers outstanding performance even under extreme conditions. The product is IEC/UL certified and features robust mechanical strength and advanced anti-degradation technologies.


Key Features

  • High Power Output
    Power range from 610W to 635W, with module efficiency up to 23.5%.

  • N-type TOPCon Cell Technology
    Ensures low initial degradation (≤1% in the first year), <0.4% annual linear degradation, and excellent low-light performance.

  • Enhanced Durability
    Withstands up to 5400Pa snow load and 2400Pa wind pressure; passed impact resistance test (45mm hail, per IEC 61215).

  • Temperature Resilience
    Excellent temperature coefficient of -0.29%/°C, suitable for hot climate zones.

  • Advanced Anti-PID & Anti-LeTID
    Stable output over time with strong resistance to potential-induced degradation and light- and elevated temperature-induced degradation.

  • Certified & Bankable
    Complies with global certifications including IEC 61215 / 61730, CE, UL, UKCA, INMETRO, CGC, and more.


Technical Summary

ParameterValue
Cell TypeN-type TOPCon, 132 half-cut cells
Power Range610W ~ 635W
Module EfficiencyUp to 23.5%
Dimensions2382 × 1134 × 30 mm
Weight28.1 kg
Front Glass3.2mm AR-coated tempered glass
FrameAnodized aluminum alloy
Max System Voltage1500V (IEC)
Operating Temp. Range-40°C to +85°C
Connector / CableT6 or others / 4.0 mm² (custom length)
Fire RatingClass C (IEC 61730)

Applications

  • Utility-scale ground-mounted projects

  • Commercial & industrial rooftops

  • Distributed PV installations in harsh environments

  • Systems requiring long-term high-yield performance
